How to disassemble a Steam Controller - Step by step

Please do not use our photos without written permission

Please do not use our photos without written permission

So you'd like to take apart your Steam Controller... Good!  It's not too difficult.  We made both a video and a written guide for this.  So choose your own adventure.  Happy modding!

Feel free to subscribe and share your mods on the r/steamcontrollermods subreddit.

The only tool you will need is a TORX T6 Screwdriver.

Step 1:

Flip the controller over and remove the back cover.  To remove the back cover simply slide the tab at the bottom of the controller.

Back cover removed

Back cover removed

Tab to remove back cover

Tab to remove back cover

Step 2:

Remove the 7 screws located on the back of the controller.  There are 4 located on the outside, and 3 hidden under the sticker.

Here are the locations of the three hidden screws

Here are the locations of the three hidden screws

Step 3:

You are now free to carefully pry the controller apart.  Keep an eye out for the battery release buttons; they tend to fall out during disassembly.

Steam Controller taken apart

Steam Controller taken apart

Location and positioning of battery release buttons.  Refer to this image if you are unsure where those go during reassembly.

Location and positioning of battery release buttons.  Refer to this image if you are unsure where those go during reassembly.

Step 4:

You will be presented with this.  There are 6 screws to unscrew here.

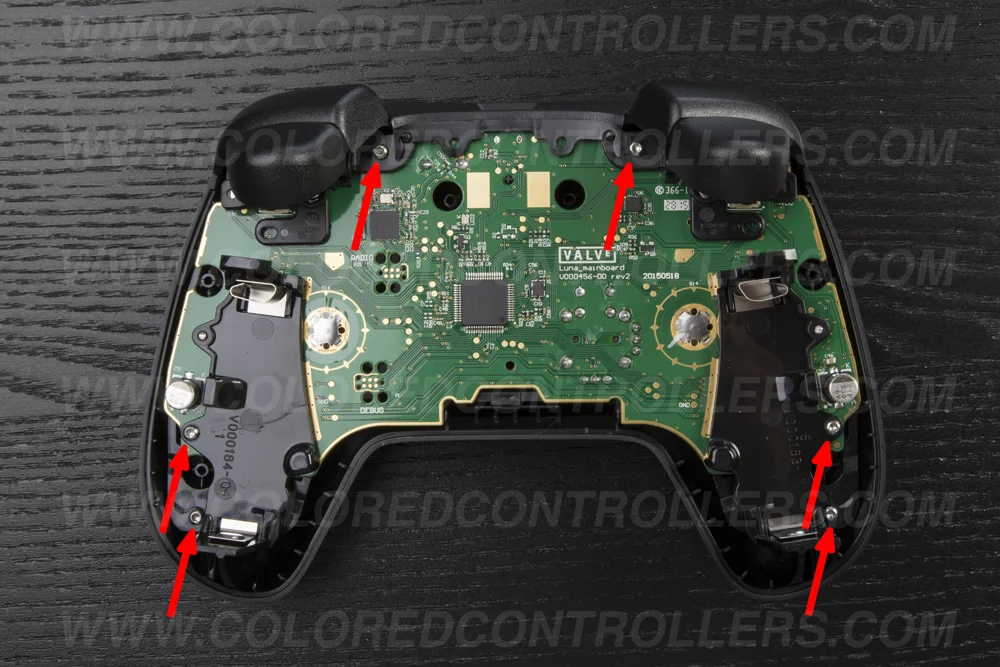

Screw positions.

Screw positions.

Step 5:

Carefully lift the main board of the controller.  You can undo the ribbon cables by gently pulling them out from the main board.  There will be two more screws to release the touchpad assemblies from the front shell of the controller.

Make sure to be gentile during this step.  Ribbon cables are delicate.

Make sure to be gentile during this step.  Ribbon cables are delicate.

After this step you will now have access to the buttons on the front of the controller.

After this step you will now have access to the buttons on the front of the controller.

Step 6:

Unscrew the final two screws holding the touchpad on, slide the top USB frame upwards and call it a day.  Congrats, you've successfully taken the steam controller apart!

Steam controller disassembly colored controllers

Did you find this useful?  Feel free to share it using the share button below :)
